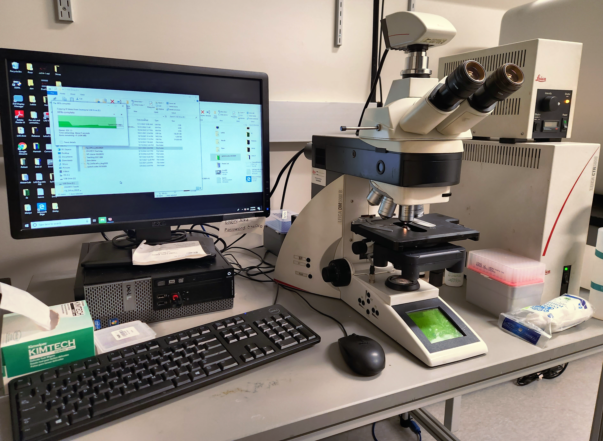

Spatial scales for upright Leica microscope in microbiology dept.
measurements 2023-03-09
These images may be used to recalculate correct spatial scale or to paste directly into a microsgraph at same size, so no math required.
Each square is 10 um x 10 um.

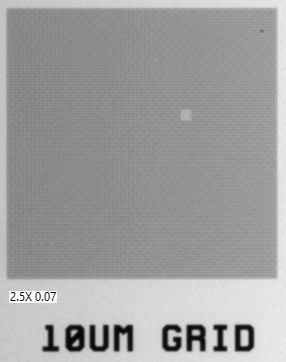

The big square with the 2.5X lens is 1 mm x 1 mm. The pattern is due to Moire pattern from the chip in the color camera, so do not use it to count little boxes.
| ImageJ spatial scales | ||
| px/um | px size um | |
| 2.5x | 0.27 | 3.7 |
| 10x | 1.09 | 0.92 |
| 20x | 2.225 | 0.45 |
| 40x | 4.23 | 0.24 |
| 63x | 6.7 | 0.148 |

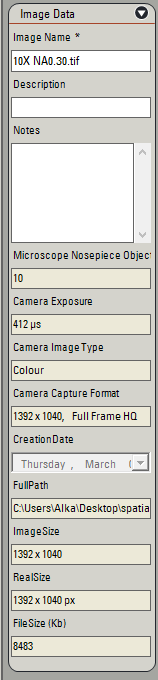

Example settings used:
